Tutorial about fluopy - Cy5 in dSTORM simulation¶
Here we outline a simulation procedure for typcial Cy5 fluorophore under dSTORM conditions.
from pprint import pprint
%matplotlib inline
import matplotlib.pyplot as plt
import numpy as np
import fluopy
import fluopy.analysis as an
import fluopy.blinking as bl
import fluopy.emissions as em
import fluopy.fcs as fcs_p
import fluopy.figure as fi
import fluopy.fluorophores as fl
import fluopy.formulas as fo
import fluopy.miscellaneous as mi
import fluopy.prediction as pr
import fluopy.simulation as si
import fluopy.transitions as tr
fluopy.__version__
'0.4.0.dev4+gc3c2cb30d'
rng = np.random.default_rng(seed=1)
Define the fluorophore system¶
fluorophore = fl.Fluorophore(name="cy5_dna", position=[0, 0])
fluorophore_system = fl.FluorophoreSystem(fluorophores=[fluorophore])
pprint(vars(fluorophore_system))
{'count': 1,
'distances': {},
'fluorophores': [Fluorophore(identity=0,
name='cy5_dna',
position=array([0, 0]),
constants=FluorophoreData(data_files='cy5_data',
QUANTUM_YIELD=0.27,
FLUORESCENCE_LIFETIME=1.7e-09,
S1_QUENCH_RATE=0,
ISC_ST_RATE=830000.0,
ISC_TS_RATE=5000.0,
RISC_RATE=0,
STA_EFFICIENCY=0,
PHOTOBLEACH_T1_RATE=10.0,
PHOTOBLEACH_T2_RATE=0,
DSTORM_PET_T_RATE_MOL=100000000.0,
DSTORM_PET_S_RATE_MOL=1000000000.0,
DSTORM_PET_SUCCESS_RATE=0.001,
DSTORM_TH_EL_RATE_1=0.01,
DSTORM_TH_EL_RATE_2=0,
DSTORM_P_EL_CROSS_SECTION=6e-24,
RAD_ESCAPE_EFFICIENCY=0.01,
RAD_RELAX_RATE=1300.0,
OFRET_EFFICIENCY=0.001,
ISO_RATE=4000000.0,
BISO_CROSS_SECTION=6e-18,
BISO_THERMAL_RATE=5000.0,
BISO_EFFICIENCY=0.04,
H2O_ATTACK_S=0,
H2O_ATTACK_T=0,
BACK_REACTION=0))],
'multi_type': False}
Define the transition set¶
transitions = fluorophore_system.load_transitions(
summarize=True,
irradiance=2,
wavelength=640,
bleaching=False,
energy_transfer=False,
dstorm=True,
)
transition_set = tr.TransitionSet(transitions, fluorophore_system)
transition_set = transition_set.remove_energy_transfers()
transition_set.finalize()
<fluopy.transitions.TransitionSet at 0x73af463d2ad0>

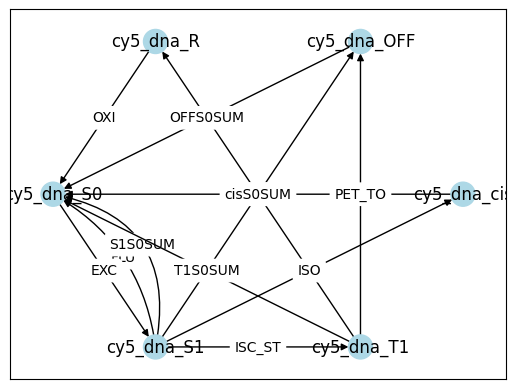

transition_set.plot(graph_type="shell", colors=None, scale=1);
transition_set.transition_df
| transition_type | abbreviation | initial_state | final_state | rate | photon | fluorophore_ids | absorbing | ||
|---|---|---|---|---|---|---|---|---|---|
| Fluorophore | identity | ||||||||
| cy5_dna | 0 | TransitionType.EXCITATION | EXC | SingleState.S0 | SingleState.S1 | 5.815700e+06 | False | [0] | False |
| 1 | TransitionType.FLUORESCENT_EMISSION | FLU | SingleState.S1 | SingleState.S0 | 1.588235e+08 | True | [0] | False | |
| 2 | TransitionType.INTERSYSTEM_CROSSING_ST | ISC_ST | SingleState.S1 | SingleState.T1 | 8.300000e+05 | False | [0] | False | |
| 3 | TransitionType.ISOMERIZATION | ISO | SingleState.S1 | SingleState.cis | 4.000000e+06 | False | [0] | False | |
| 4 | TransitionType.ADDUCT_T | PET_TO | SingleState.T1 | SingleState.OFF | 4.383440e+02 | False | [0] | False | |
| 5 | TransitionType.ADDUCT_S | PET_SO | SingleState.S1 | SingleState.OFF | 4.383440e+03 | False | [0] | False | |
| 6 | TransitionType.RAD_ESCAPE | PET_TR | SingleState.T1 | SingleState.R | 4.383440e+03 | False | [0] | False | |
| 7 | TransitionType.RAD_RELAX | OXI | SingleState.R | SingleState.S0 | 1.300000e+03 | False | [0] | False | |
| 8 | TransitionType.S1_S0_TRANSITIONS | S1S0SUM | SingleState.S1 | SingleState.S0 | 4.289652e+08 | False | [0] | False | |
| 9 | TransitionType.T1_S0_TRANSITIONS | T1S0SUM | SingleState.T1 | SingleState.S0 | 4.433440e+05 | False | [0] | False | |
| 10 | TransitionType.CIS_S0_TRANSITIONS | cisS0SUM | SingleState.cis | SingleState.S0 | 4.366202e+04 | False | [0] | False | |
| 11 | TransitionType.OFF_S0_TRANSITIONS | OFFS0SUM | SingleState.OFF | SingleState.S0 | 4.866202e-02 | False | [0] | False |
Make a prediction¶
%%time
prediction = pr.Prediction(transition_set)
prediction
CPU times: user 10.2 ms, sys: 35 μs, total: 10.3 ms
Wall time: 10.1 ms
<fluopy.prediction.Prediction at 0x73af462d2120>

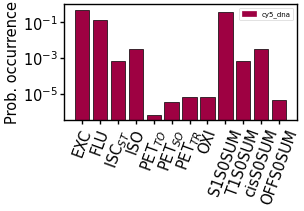

prediction.plot_frequency_transitions(scale=0.5)
prediction.plot_frequency_states(scale=0.5)
prediction.plot_mean_lifetimes(scale=0.5)

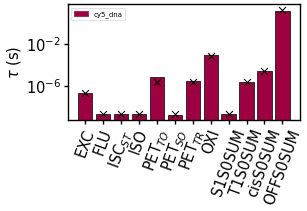

prediction.plot_mean_transition_times(scale=0.5)
prediction.plot_state_occupations(scale=0.5)
prediction.plot_transition_time_distributions(
fluorophore="cy5_dna", transition_id=0, scale=0.5
);
Run a simulation¶
simulation = si.Simulation(transition_set)
simulation
<fluopy.simulation.Simulation at 0x73af4628b0e0>
%%time
# simulate until it reaches given end_time
simulation.run(start_at=None, size=1e6, end_time=500, seed=rng, use_memmap=None)
mi.print_class(simulation)
Floating point precision error warning:
The smallest safe increment is 5.68e-14.
Everything drawn below this number might be rounded to zero
when approaching the time limit of this simulation.
Using the highest possible rate which occurs for example in state combination [1]
gives a probability of 3.37e-05 for a smaller increment to be drawn.
Attributes of <fluopy.simulation.Simulation object at 0x73af4628b0e0>:
.................................................................
transition_set = <fluopy.transitions.TransitionSet object at 0x73af463d2ad0>
_________________________________________________________________
time_series = array([0.00000000e+00, 1.15167401e-07, 1.1843564....95205381e+02, 5.00000000e+02], shape=(5712133,))
_________________________________________________________________
transition_series = array([0, 8, 0, ..., 1, 0, 5], shape=(5712131,), dtype=uint32)
_________________________________________________________________
state_series = array([[0, 1, 0, ..., 0, 1, 7]], shape=(1, 5712132), dtype=int8)
_________________________________________________________________
memmap_path = None
_________________________________________________________________
CPU times: user 17.8 s, sys: 43 ms, total: 17.9 s
Wall time: 17.9 s
Analyze the simulation¶
analysis = an.Analysis(simulation=simulation)
mi.print_class(analysis)
Attributes of <fluopy.analysis.Analysis object at 0x73af4628b770>:
.................................................................
simulation = <fluopy.simulation.Simulation object at 0x73af4628b0e0>
_________________________________________________________________
frequency_transitions = array([4.97966696e-01, 1.33388923e-01, 7.1391920... 7.04815768e-04, 3.33833380e-03, 5.60211242e-06])
_________________________________________________________________
frequency_states = {'cy5_dna': array([4.97966609e-01, 4.97966609e-01, 7.1391907...3322e-03,
5.77717742e-06, 8.75329912e-06])}
_________________________________________________________________
transition_time_distributions = [array([1.15167401e-07, 2.00370096e-07, 1.0292415....95364998e-07, 1.11813222e-07], shape=(2844451,)), array([2.68688345e-09, 1.11625008e-09, 1.3127627...3.94192057e-09, 3.95021971e-09], shape=(761935,)), array([8.07111420e-11, 1.11485205e-09, 3.2127974..., 6.90738489e-09, 2.30653541e-09], shape=(4078,)), array([2.76458185e-11, 4.92518230e-11, 5.2073717... 7.08291736e-09, 1.83433713e-10], shape=(19069,)), array([4.73158664e-07, 1.22683674e-05]), array([1.03810956e-09, 1.61205804e-09, 7.8880546... 1.63663572e-09, 1.87384330e-09, 2.00316208e-10]), ...]
_________________________________________________________________
lifetime_distributions = {'cy5_dna': [array([1.15167401e-07, 2.00370096e-07, 1.0292415....95364998e-07, 1.11813222e-07], shape=(2844451,)), array([3.26823931e-09, 3.19092134e-10, 4.7755285....95021971e-09, 2.00316208e-10], shape=(2844451,)), array([2.33227646e-06, 5.25163599e-07, 3.4783531..., 2.32479783e-06, 1.38649528e-06], shape=(4078,)), array([2.30303056e-05, 1.90388195e-05, 9.5060310... 2.59423306e-05, 5.30170360e-06], shape=(19069,)), array([22.88907607, 4.74252953, 52.43039859, 5...4, 19.6691241 ,
9.28291987, 28.8052281 ]), array([1.42304452e-05, 6.64203883e-04, 5.2950411...6994e-04,
4.20698968e-04, 1.00895970e-03])]}
_________________________________________________________________
mean_transition_times = array([1.72110872e-07, 1.68882762e-09, 1.6765913... 2.20814134e-06, 2.27836245e-05, 1.54444290e+01])
_________________________________________________________________
mean_lifetimes = {'cy5_dna': array([1.72110872e-07, 1.68831000e-09, 2.2156950...6245e-05,
1.54444290e+01, 9.15856192e-04])}
_________________________________________________________________
state_occupations = {'cy5_dna': array([9.58701900e-04, 9.40432167e-06, 1.7694326...0151e-04,
9.98073724e-01, 8.96755638e-05])}
_________________________________________________________________
analysis.get_fluorescence_lifetimes(fluorophore="cy5_dna")
analysis.get_emitting_transition_lifetimes(fluorophore="cy5_dna")

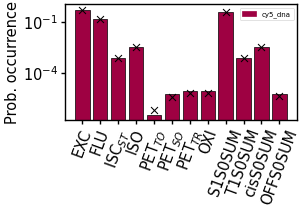

analysis.plot_frequency_transitions(scale=0.5, prediction=prediction)
analysis.plot_frequency_states(scale=0.5, prediction=prediction)
analysis.plot_mean_transition_times(scale=0.5, prediction=prediction)
analysis.plot_mean_lifetimes(scale=0.5, prediction=prediction)
analysis.plot_state_occupations(scale=0.5, prediction=prediction)
analysis.plot_lifetime_distributions(
scale=0.5, prediction=prediction, fluorophore="cy5_dna", state_identity=1
)
analysis.plot_transition_time_distributions(
scale=0.5, prediction=prediction, fluorophore="cy5_dna", transition_id=0
)
array([[<Axes: title={'center': '$\\tau$ of cy5_dna\n EXC'}, xlabel='time to transition [s]', ylabel='PD'>]],
dtype=object)
Simulation of experimentally observable (photons per frames) only¶
Extract photon emission events from simulation¶
%%time
emissions = em.Emissions(frame_time="5ms", seed=rng, bandpass=(600, 800))
emissions.extract(simulation=simulation)
emissions
CPU times: user 250 ms, sys: 2.01 ms, total: 252 ms
Wall time: 252 ms
<fluopy.emissions.Emissions at 0x73af4628a7b0>
Simulate photon emission events¶
Correct for detection efficiency and noise contributions:
emissions.add_photon_collection_objective(p=0.1, seed=rng) # 1.
emissions.add_quantum_efficiency(p=0.9, seed=rng) # 3.1.
emissions.add_poisson_noise(
rate=0.05, seed=rng
) # 3.2. (dark noise), note the frame time
emissions.add_emccd_gain(emccd_gain=10, seed=rng) # 4.
emissions.add_gaussian_noise(mean=10, std=1, seed=rng) # 5. (readout noise)
emissions
<fluopy.emissions.Emissions at 0x73af4628a7b0>
emissions = em.Emissions(frame_time=”5ms”, seed=rng, bandpass=(660, 700)) emissions.extract(simulation=approximation)
# 2.
# at this point, the bandpass filter was applied
# yet, the effect of photon collection by the objective is missing
# the order is not relevant for two consecutive binomial distributions
# it is more convenient to apply the bandpass first because it needs the
# information about the emitting fluorophore whereas all the other effects are
# roughly wavelength independent
p_photon_collection = fo.calculate_photon_collection_rate(NA=1.45, n1=1.51)
emissions.add_photon_collection_objective(p=p_photon_collection) # 1.
emissions.add_quantum_efficiency(p=0.9) # 4.1.
emissions.add_transmittance(p=0.99) # 3 (depending on number of components of optical
# path, may be applied multiple times)
emissions.add_poisson_noise(rate=0.05) # 4.2. (dark noise), note the frame time
emissions.add_emccd_gain(emccd_gain=10) # 5. (+ multiplicative noise)
emissions.add_gaussian_noise(mean=10, std=1, seed=rng) # 6. (readout noise)
# CIC (spurious noise) neglected since low probability to happen in the pixels of
# interest
emissions.apply_threshold(threshold=100) # 7 (thresholding)

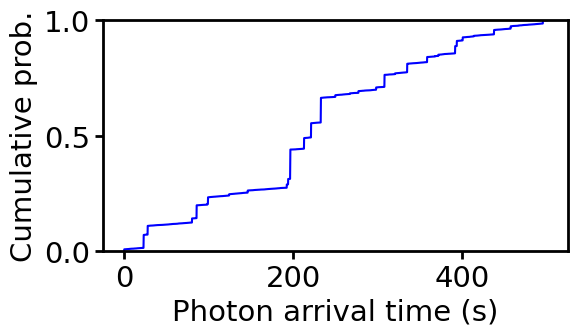

emissions.plot_cumulative_events(scale=1)

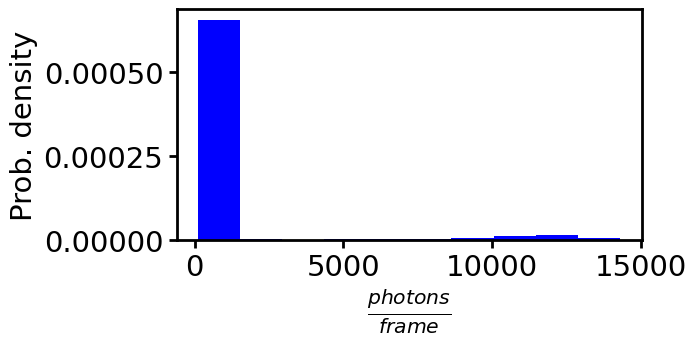

emissions.plot_histogram(scale=1)

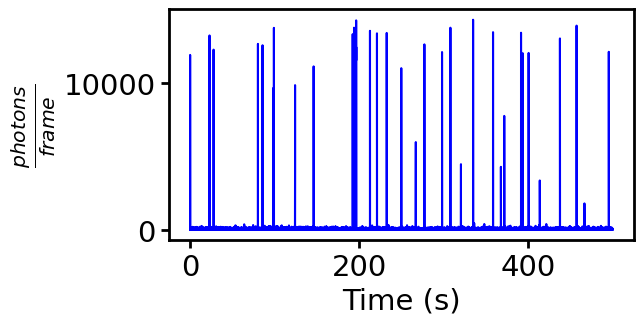

emissions.plot_time_series(scale=1)
# to save the time_series and time_points
# emissions.save(path='', name_extension='test')
# to load time_series and time_points
# emissions.load(path='', name_extension='test')
array([[<Axes: xlabel='Time (s)', ylabel='$\\frac{photons}{frame}$'>]],
dtype=object)
Simulation of pulsed excitation¶
%%time
emissions_tcspc = em.Emissions(frame_time="1ms", seed=rng, bandpass=None)
lifetimes_DA, lifetimes_D, lifetimes_all, simulation_object = emissions_tcspc.tcspc(
transition_set=transition_set,
number_pulses=5e5,
pulse_duration=1e-11,
time_between_pulses=1e-7,
excitation_rates={"cy5_dna": 1e11},
size=1e5,
store_time_points=True,
# details = True
)
the last frame (of index 0.05) has 1.00e+00 times the pulses of other frames.
CPU times: user 25.4 s, sys: 205 ms, total: 25.6 s
Wall time: 25.4 s

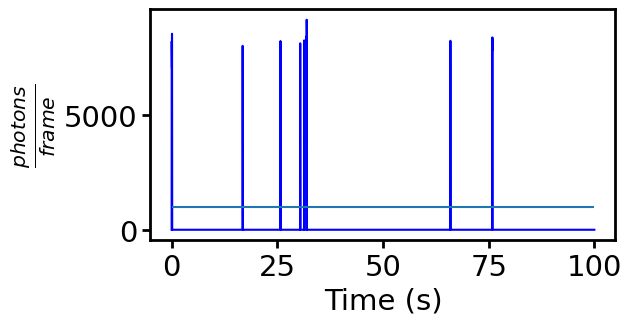

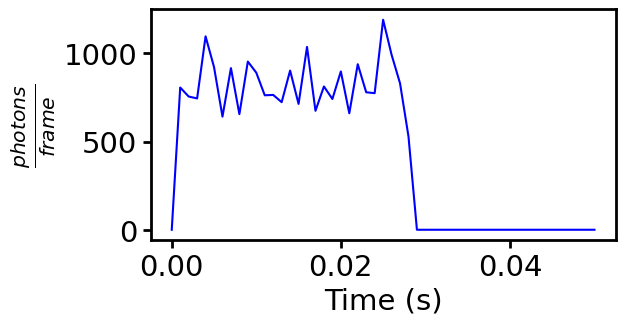

emissions_tcspc.plot_time_series()
array([[<Axes: xlabel='Time (s)', ylabel='$\\frac{photons}{frame}$'>]],
dtype=object)
fi.universal_figure(
type_="hist", data=lifetimes_all, ylabel="PD", density=True, xlabel="Lifetime (s)"
)
array([[<Axes: xlabel='Lifetime (s)', ylabel='PD'>]], dtype=object)
Fluorescence correlation spectroscopy¶
Observed fluorescence emission events can be analyzed by a correlation analysis.
fcs = fcs_p.FCS(emissions)
list(vars(fcs).keys())
['emissions', 'autocorrelation', 'tau']
Autocorrelation of time points¶
%%time
fcs.autocorrelate_time_points(
exp_min=-20, exp_max=-6, points_per_base=4, base=4, normalize=True
)
CPU times: user 3.59 s, sys: 329 ms, total: 3.91 s
Wall time: 3.91 s
<fluopy.fcs.FCS at 0x73af4628af90>
mi.print_class(fcs)

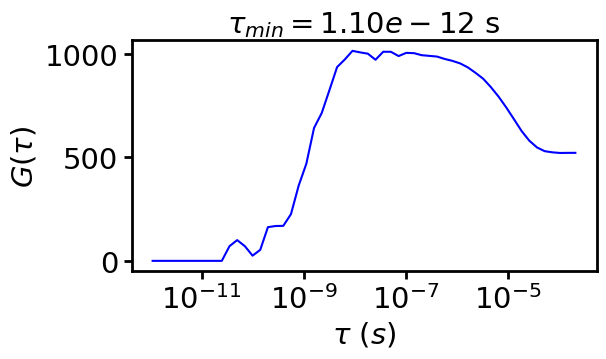

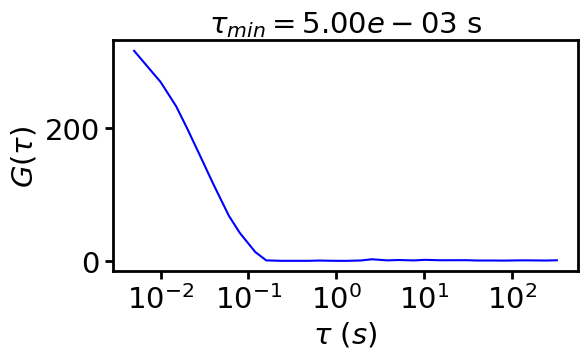

fcs.plot(normalize_to=None, unit="s", scale=1);
Attributes of <fluopy.fcs.FCS object at 0x73af4628af90>:
.................................................................
emissions = <fluopy.emissions.Emissions object at 0x73af4628a7b0>
_________________________________________________________________
autocorrelation = array([ 0. , 0. , 0. ...89, 520.44977266, 520.89702054, 521.04181879])
_________________________________________________________________
tau = array([1.09785722e-12, 1.55260457e-12, 2.1957144... 1.04193529e-04, 1.47351902e-04, 2.08387058e-04])
_________________________________________________________________
Autocorrelation of time series¶
fcs.autocorrelate_time_series(log=True, m=4, normalize=True)
<fluopy.fcs.FCS at 0x73af4628af90>
fcs.plot(normalize_to=None, unit="s", scale=1);
# some fcs fits are available:
# fcs_predict = fcs_p.fit_dark(tau, dark_lifetime, dark_occupation)
# fcs_predict = fcs_p.fit_antibunching(tau, excitation_rate, s1_lifetime)
# fcs_predict = fcs_p.fit_triplet_cis(tau, k_isc, k_T, k_01, k_10, k_iso, k_biso_eff)

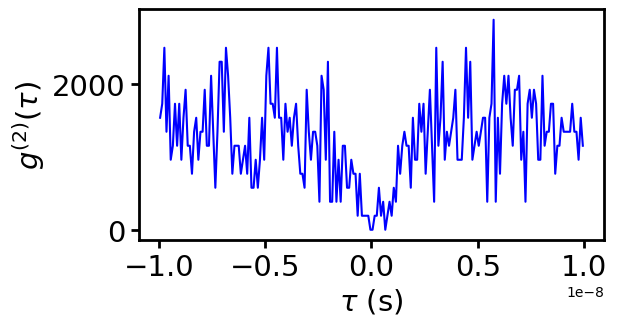

Antibunching¶
Alternatively, you can focus on fast time scales in a linear scale and observe antibunching.
# sensible to tau_max and bin_width, see coincidence notebook
hist, bins = fcs_p.coincidence(
emissions.event_time_points[: int(2e5)], tau_max=1e-8, bin_width=1e-10, seed=rng
)
fi.universal_figure(
type_="line",
data=[bins, hist],
xlabel=r"$\tau$ (s)",
ylabel=r"$g^{(2)}(\tau)$",
scale=1,
);
Blinking¶
Emissions from a short simulation¶
We limit the dataset to 2000 frames for illustration purposes.
%%time
emissions = em.Emissions(frame_time="10ms", seed=rng, bandpass=None)
emissions.simulate(
transition_set=transition_set, store_time_points=False, frames=10_000
)
emissions
CPU times: user 6.34 s, sys: 5.9 ms, total: 6.35 s
Wall time: 6.35 s
<fluopy.emissions.Emissions at 0x73af43f65a90>
threshold: int = 1000
emissions.plot_time_series(scale=1)
plt.hlines(threshold, xmin=0, xmax=100)
<matplotlib.collections.LineCollection at 0x73af413f2e40>
blinks = bl.Blinking(emissions, threshold=threshold)
blinks
<fluopy.blinking.Blinking at 0x73af413f2f90>
mi.print_class(blinks)
Attributes of <fluopy.blinking.Blinking object at 0x73af413f2f90>:
.................................................................
emissions = <fluopy.emissions.Emissions object at 0x73af43f65a90>
_________________________________________________________________
on_periods = array([11, 4, 4, 3, 4, 5, 3, 8])
_________________________________________________________________
off_periods = array([1667, 891, 464, 89, 57, 3394, 986])
_________________________________________________________________
on_periods_frames = array([ 1, 1679, 2574, 3042, 3134, 3195, 6594, 7583])
_________________________________________________________________
off_periods_frames = array([ 12, 1683, 2578, 3045, 3138, 3200, 6597])
_________________________________________________________________
# plot a histogram of OFF times
blinks.plot(
mode="off_histogram", density=True, display_mean=True, as_time="s", scale=0.5
)
# plot a histogram of ON times
blinks.plot(
mode="on_histogram", density=True, display_mean=True, as_time="ms", scale=0.5
)
# plot a time series of OFF times
blinks.plot(mode="off_frame_series", scale=0.5)
# plot a time series of ON times
blinks.plot(mode="on_frame_series", scale=0.5)
array([[<Axes: xlabel='identity', ylabel='consecutive ON frames'>]],
dtype=object)
# to get information of the photophysical (not analytical) OFF of each fluorophore, use
on_off_times_photophys, on_off_values_photophys = bl.get_off_statistics(
simulation=simulation, index=0
)
# to get the analytical OFF statistics as the same view, use
on_off_times_analytic, on_off_values_analytic = bl.get_analytical_off_statistics(
off_frames=blinks.off_periods_frames,
off_periods=blinks.off_periods,
on_frames=blinks.on_periods_frames,
frame_time=blinks.emissions.parameters["frame_time"],
)
# plot the photophysical OFF statistics
bl.plot_off_statistics(
on_off_times_photophys,
on_off_values_photophys,
scale=1,
title="photophysical OFF",
)
# plot the analytical OFF statistics (no differentiation between fluorophores)
bl.plot_off_statistics(
on_off_times_analytic, on_off_values_analytic, scale=1, title="analytical OFF"
)
array([[<Axes: title={'center': 'analytical OFF'}, xlabel='Time (s)'>]],
dtype=object)
Emissions from the long simulation¶
Get more detailed information from a complete simulation:
%%time
emissions = em.Emissions(frame_time="10ms", seed=rng, bandpass=None)
emissions.extract(simulation=simulation)
emissions
CPU times: user 250 ms, sys: 12 ms, total: 262 ms
Wall time: 261 ms
<fluopy.emissions.Emissions at 0x73af40f21a70>
blinks = bl.Blinking(emissions, threshold=threshold)
blinks
<fluopy.blinking.Blinking at 0x73af40acbb10>
mi.print_class(blinks)
Attributes of <fluopy.blinking.Blinking object at 0x73af40acbb10>:
.................................................................
emissions = <fluopy.emissions.Emissions object at 0x73af40f21a70>
_________________________________________________________________
on_periods = array([ 1, 9, 6, 3, 7, 1, 4, 2, 2, 3, ... 2, 5, 3, 1, 1, 4, 3, 2, 1, 3, 2, 2])
_________________________________________________________________
off_periods = array([2288, 473, 5242, 538, 1277, 62, 2500,... 397, 1981, 201, 692, 1317, 2383, 1966, 3808])
_________________________________________________________________
on_periods_frames = array([ 1, 2290, 2772, 8020, 8561, 9845,...39343,
40038, 41357, 43741, 45710, 49520])
_________________________________________________________________
off_periods_frames = array([ 2, 2299, 2778, 8023, 8568, 9846,...39142, 39346,
40040, 41358, 43744, 45712])
_________________________________________________________________
# plot a histogram of OFF times
blinks.plot(
mode="off_histogram", density=True, display_mean=True, as_time="s", scale=0.5
)
# plot a histogram of ON times
blinks.plot(
mode="on_histogram", density=True, display_mean=True, as_time="ms", scale=0.5
)
# plot a time series of OFF times
blinks.plot(mode="off_frame_series", scale=0.5)
# plot a time series of ON times
blinks.plot(mode="on_frame_series", scale=0.5)
array([[<Axes: xlabel='identity', ylabel='consecutive ON frames'>]],
dtype=object)
# to get information of the photophysical (not analytical) OFF of each fluorophore, use
on_off_times_photophys, on_off_values_photophys = bl.get_off_statistics(
simulation=simulation, index=0
)
# to get the analytical OFF statistics as the same view, use
on_off_times_analytic, on_off_values_analytic = bl.get_analytical_off_statistics(
off_frames=blinks.off_periods_frames,
off_periods=blinks.off_periods,
on_frames=blinks.on_periods_frames,
frame_time=blinks.emissions.parameters["frame_time"],
)
# plot the photophysical OFF statistics
bl.plot_off_statistics(
on_off_times_photophys,
on_off_values_photophys,
scale=1,
title="photophysical OFF",
)
# plot the analytical OFF statistics (no differentiation between fluorophores)
bl.plot_off_statistics(
on_off_times_analytic, on_off_values_analytic, scale=0.5, title="analytical OFF"
)
array([[<Axes: title={'center': 'analytical OFF'}, xlabel='Time (s)'>]],
dtype=object)
