Tutorial about fluopy - homo-FRET simulation¶
Here we outline a simulation procedure for a homo-FRET pair that consist of two Cy5 fluorophores.
from pprint import pprint
%matplotlib inline
import numpy as np
import fluopy
import fluopy.analysis as an
import fluopy.emissions as em
import fluopy.fcs as fcs_p
import fluopy.figure as fi
import fluopy.fluorophores as fl
import fluopy.formulas as fo
import fluopy.miscellaneous as mi
import fluopy.prediction as pr
import fluopy.simulation as si
import fluopy.transitions as tr
fluopy.__version__
'0.4.0.dev4+gc3c2cb30d'
rng = np.random.default_rng(seed=1)
Define the fluorophore system¶
fluorophore_1 = fl.Fluorophore(name="cy5_dna", position=[0, 0])
fluorophore_2 = fl.Fluorophore(name="cy5_dna", position=[0, 4])
fluorophore_system = fl.FluorophoreSystem(fluorophores=[fluorophore_1, fluorophore_2])
pprint(vars(fluorophore_system))
{'count': 2,
'distances': {(0, 1): np.float64(4.0), (1, 0): np.float64(4.0)},
'fluorophores': [Fluorophore(identity=0,
name='cy5_dna',
position=array([0, 0]),
constants=FluorophoreData(data_files='cy5_data',
QUANTUM_YIELD=0.27,
FLUORESCENCE_LIFETIME=1.7e-09,
S1_QUENCH_RATE=0,
ISC_ST_RATE=830000.0,
ISC_TS_RATE=5000.0,
RISC_RATE=0,
STA_EFFICIENCY=0,
PHOTOBLEACH_T1_RATE=10.0,
PHOTOBLEACH_T2_RATE=0,
DSTORM_PET_T_RATE_MOL=100000000.0,
DSTORM_PET_S_RATE_MOL=1000000000.0,
DSTORM_PET_SUCCESS_RATE=0.001,
DSTORM_TH_EL_RATE_1=0.01,
DSTORM_TH_EL_RATE_2=0,
DSTORM_P_EL_CROSS_SECTION=6e-24,
RAD_ESCAPE_EFFICIENCY=0.01,
RAD_RELAX_RATE=1300.0,
OFRET_EFFICIENCY=0.001,
ISO_RATE=4000000.0,
BISO_CROSS_SECTION=6e-18,
BISO_THERMAL_RATE=5000.0,
BISO_EFFICIENCY=0.04,
H2O_ATTACK_S=0,
H2O_ATTACK_T=0,
BACK_REACTION=0)),
Fluorophore(identity=1,
name='cy5_dna',
position=array([0, 4]),
constants=FluorophoreData(data_files='cy5_data',
QUANTUM_YIELD=0.27,
FLUORESCENCE_LIFETIME=1.7e-09,
S1_QUENCH_RATE=0,
ISC_ST_RATE=830000.0,
ISC_TS_RATE=5000.0,
RISC_RATE=0,
STA_EFFICIENCY=0,
PHOTOBLEACH_T1_RATE=10.0,
PHOTOBLEACH_T2_RATE=0,
DSTORM_PET_T_RATE_MOL=100000000.0,
DSTORM_PET_S_RATE_MOL=1000000000.0,
DSTORM_PET_SUCCESS_RATE=0.001,
DSTORM_TH_EL_RATE_1=0.01,
DSTORM_TH_EL_RATE_2=0,
DSTORM_P_EL_CROSS_SECTION=6e-24,
RAD_ESCAPE_EFFICIENCY=0.01,
RAD_RELAX_RATE=1300.0,
OFRET_EFFICIENCY=0.001,
ISO_RATE=4000000.0,
BISO_CROSS_SECTION=6e-18,
BISO_THERMAL_RATE=5000.0,
BISO_EFFICIENCY=0.04,
H2O_ATTACK_S=0,
H2O_ATTACK_T=0,
BACK_REACTION=0))],
'multi_type': False}
Define the transition set¶
transitions = fluorophore_system.load_transitions(
summarize=True,
irradiance=2,
wavelength=640,
bleaching=False,
energy_transfer=True,
dstorm=False,
)
transition_set = tr.TransitionSet(transitions, fluorophore_system)
transition_set.finalize()
<fluopy.transitions.TransitionSet at 0x795a5bb3a7b0>

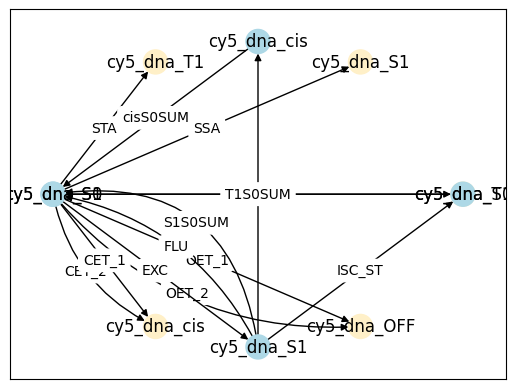

transition_set.plot(graph_type="shell", colors=None, scale=1);
transition_set.transition_df
| transition_type | abbreviation | initial_state | final_state | rate | photon | fluorophore_ids | absorbing | ||
|---|---|---|---|---|---|---|---|---|---|
| Fluorophore | identity | ||||||||
| cy5_dna | 0 | TransitionType.EXCITATION | EXC | SingleState.S0 | SingleState.S1 | 5.815700e+06 | False | [0, 1] | False |
| 1 | TransitionType.FLUORESCENT_EMISSION | FLU | SingleState.S1 | SingleState.S0 | 1.588235e+08 | True | [0, 1] | False | |
| 2 | TransitionType.INTERSYSTEM_CROSSING_ST | ISC_ST | SingleState.S1 | SingleState.T1 | 8.300000e+05 | False | [0, 1] | False | |
| 3 | TransitionType.ISOMERIZATION | ISO | SingleState.S1 | SingleState.cis | 4.000000e+06 | False | [0, 1] | False | |
| 4 | TransitionType.S1_S0_TRANSITIONS | S1S0SUM | SingleState.S1 | SingleState.S0 | 4.245818e+08 | False | [0, 1] | False | |
| 5 | TransitionType.T1_S0_TRANSITIONS | T1S0SUM | SingleState.T1 | SingleState.S0 | 5.000000e+03 | False | [0, 1] | False | |
| 6 | TransitionType.CIS_S0_TRANSITIONS | cisS0SUM | SingleState.cis | SingleState.S0 | 4.366202e+04 | False | [0, 1] | False | |
| D: cy5_dna, A: cy5_dna, dist: 4.0 | 7 | TransitionType.CIS_FRET_1 | CET_1 | PairedState.S1_Cis | PairedState.S0_Cis | 2.095073e+10 | False | [(0, 1), (1, 0)] | False |
| 8 | TransitionType.CIS_FRET_2 | CET_2 | PairedState.S1_Cis | PairedState.S0_S0 | 8.729473e+08 | False | [(0, 1), (1, 0)] | False | |
| 9 | TransitionType.OFF_FRET_1 | OET_1 | PairedState.S1_OFF | PairedState.S0_OFF | 8.908940e+08 | False | [(0, 1), (1, 0)] | False | |
| 10 | TransitionType.OFF_FRET_2 | OET_2 | PairedState.S1_OFF | PairedState.S0_S0 | 8.917858e+05 | False | [(0, 1), (1, 0)] | False | |
| 11 | TransitionType.FRET | FRET | PairedState.S1_S0 | PairedState.S0_S1 | 1.138844e+10 | False | [(0, 1), (1, 0)] | False | |
| 12 | TransitionType.S_S_ANNIHILATION | SSA | PairedState.S1_S1 | PairedState.S0_S1 | 2.182368e+10 | False | [(0, 1), (1, 0)] | False | |
| 13 | TransitionType.S_T_ANNIHILATION | STA | PairedState.S1_T1 | PairedState.S0_T1 | 6.432597e+09 | False | [(0, 1), (1, 0)] | False |
Make a prediction¶
%%time
prediction = pr.Prediction(transition_set)
prediction
prediction accuracy of energy transfers more difficult to tune. Only frequencies available, lifetimes and occupations not available.
CPU times: user 4.46 ms, sys: 769 μs, total: 5.23 ms
Wall time: 5.24 ms
<fluopy.prediction.Prediction at 0x795a5bb86e40>

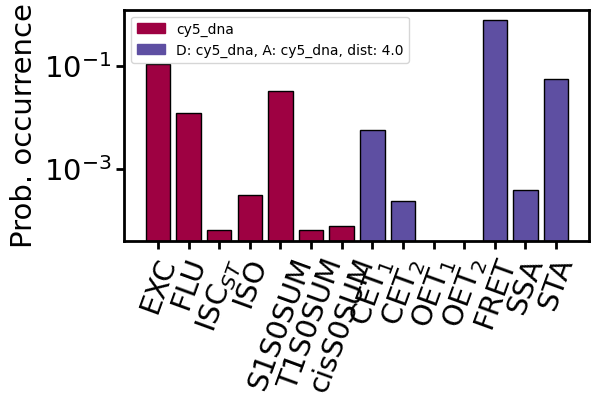

prediction.plot_frequency_transitions(scale=1)

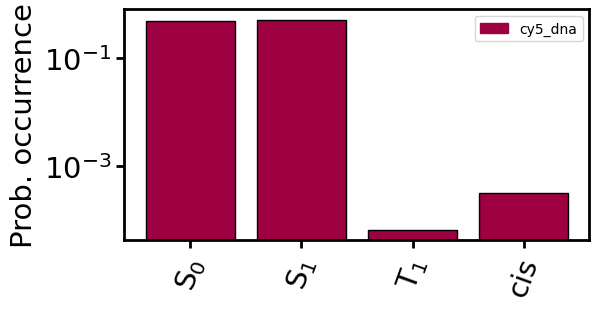

prediction.plot_frequency_states(scale=1)
array([[<Axes: ylabel='Prob. occurrence'>]], dtype=object)
Run a simulation¶
simulation = si.Simulation(transition_set)
simulation
<fluopy.simulation.Simulation at 0x795a5bb856a0>
%%time
# simulate until it reaches given end_time
simulation.run(start_at=None, size=1e6, end_time=0.1, seed=rng, use_memmap=None)
mi.print_class(simulation)
Floating point precision error warning:
The smallest safe increment is 1.39e-17.
Everything drawn below this number might be rounded to zero
when approaching the time limit of this simulation.
Using the highest possible rate which occurs for example in state combination [1, 1]
gives a probability of 6.22e-07 for a smaller increment to be drawn.
Attributes of <fluopy.simulation.Simulation object at 0x795a5bb856a0>:
.................................................................
transition_set = <fluopy.transitions.TransitionSet object at 0x795a5bb3a7b0>
_________________________________________________________________
time_series = array([0.00000000e+00, 5.75837004e-08, 5.7745339....99998755e-02, 1.00000000e-01], shape=(6051527,))
_________________________________________________________________
transition_series = array([ 1, 61, 60, ..., 57, 7, 57], shape=(6051525,), dtype=uint32)
_________________________________________________________________
state_series = array([[0, 1, 0, ..., 6, 6, 6],
[0, 0, 1, ..., 0, 1, 0]], shape=(2, 6051526), dtype=int8)
_________________________________________________________________
memmap_path = None
_________________________________________________________________
CPU times: user 18 s, sys: 61.7 ms, total: 18 s
Wall time: 18 s
Analyze the simulation¶
analysis = an.Analysis(simulation=simulation)
mi.print_class(analysis)
Attributes of <fluopy.analysis.Analysis object at 0x795a5bb85be0>:
.................................................................
simulation = <fluopy.simulation.Simulation object at 0x795a5bb856a0>
_________________________________________________________________
frequency_transitions = array([1.08464891e-01, 1.23426740e-02, 6.0811117...8601e-01,
3.95768009e-04, 5.60673549e-02])
_________________________________________________________________
frequency_states = {'cy5_dna': array([4.99893429e-01, 4.99893336e-01, 3.41028657e-05, 1.79132716e-04])}
_________________________________________________________________
transition_time_distributions = [array([5.75837004e-08, 2.43814055e-08, 3.7604061...6.61793222e-08, 4.83034908e-08], shape=(656378,)), array([1.08028480e-10, 1.36729061e-12, 1.7263118... 1.26793367e-10, 2.92761926e-11], shape=(74692,)), array([1.85347066e-12, 8.06076628e-11, 1.9416100... 1.92588584e-11, 3.25191402e-11, 5.52729390e-11]), array([9.10271807e-11, 1.79032995e-10, 2.2909842..., 2.31075992e-11, 7.65621455e-11], shape=(1933,)), array([5.27470570e-12, 9.59676323e-11, 4.0736183...8.00380734e-11, 5.88597504e-11], shape=(200151,)), array([4.90228138e-04, 5.14541837e-05, 1.6687757... 5.06916553e-04, 7.06692401e-05, 3.08365112e-04]), ...]
_________________________________________________________________
lifetime_distributions = {'cy5_dna': [array([5.75837004e-08, 9.72495775e-11, 2.4381405....61793222e-08, 4.83034908e-08], shape=(5394290,)), array([1.61638655e-10, 1.57814708e-11, 9.2591405....17844776e-10, 1.59195851e-11], shape=(5394290,)), array([4.90228138e-04, 5.14541837e-05, 1.6687757... 5.06916553e-04, 7.06692401e-05, 3.08365112e-04]), array([1.18069071e-06, 2.91728413e-06, 1.1695321..., 1.28928581e-07, 8.49454654e-06], shape=(1932,))]}
_________________________________________________________________
mean_transition_times = array([1.40028576e-07, 8.96120848e-11, 9.1103883...5235e-11,
6.37369476e-11, 1.42387547e-10])
_________________________________________________________________
mean_lifetimes = {'cy5_dna': array([2.09216914e-08, 8.73164557e-11, 2.05773333e-04, 5.66268927e-06])}
_________________________________________________________________
state_occupations = {'cy5_dna': array([0.56429053, 0.00235506, 0.37862432, 0.05473009])}
_________________________________________________________________
analysis.get_fluorescence_lifetimes(fluorophore="cy5_dna")
analysis.get_emitting_transition_lifetimes(fluorophore="cy5_dna")

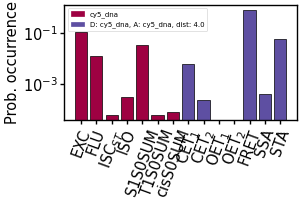

analysis.plot_frequency_transitions(scale=0.5)
analysis.plot_frequency_states(scale=0.5)

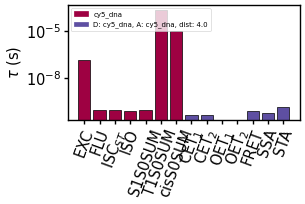

analysis.plot_mean_transition_times(scale=0.5)
analysis.plot_mean_lifetimes(scale=0.5)
analysis.plot_state_occupations(scale=0.5)
analysis.plot_lifetime_distributions(scale=0.5, fluorophore="cy5_dna", state_identity=1)
analysis.plot_transition_time_distributions(
scale=0.5, fluorophore="cy5_dna", transition_id=0
)
array([[<Axes: title={'center': '$\\tau$ of cy5_dna\n EXC'}, xlabel='time to transition [s]', ylabel='PD'>]],
dtype=object)
Simulation of experimentally observable (photons per frames) only¶
Extract photon emission events from simulation¶
%%time
emissions = em.Emissions(frame_time="5ms", seed=rng, bandpass=(600, 800))
emissions.extract(simulation=simulation)
emissions
CPU times: user 34.7 ms, sys: 0 ns, total: 34.7 ms
Wall time: 34.6 ms
<fluopy.emissions.Emissions at 0x795a5bb87cb0>
Simulate photon emission events¶
Correct for detection efficiency and noise contributions:
emissions.add_photon_collection_objective(p=0.1, seed=rng) # 1.
emissions.add_quantum_efficiency(p=0.9, seed=rng) # 3.1.
emissions.add_poisson_noise(
rate=0.05, seed=rng
) # 3.2. (dark noise), note the frame time
emissions.add_emccd_gain(emccd_gain=10, seed=rng) # 4.
emissions.add_gaussian_noise(mean=10, std=1, seed=rng) # 5. (readout noise)
emissions
<fluopy.emissions.Emissions at 0x795a5bb87cb0>
emissions = em.Emissions(frame_time=”5ms”, seed=rng, bandpass=(660, 700)) emissions.extract(simulation=approximation)
# 2.
# at this point, the bandpass filter was applied
# yet, the effect of photon collection by the objective is missing
# the order is not relevant for two consecutive binomial distributions
# it is more convenient to apply the bandpass first because it needs the
# information about the emitting fluorophore whereas all the other effects are
# roughly wavelength independent
p_photon_collection = fo.calculate_photon_collection_rate(NA=1.45, n1=1.51)
emissions.add_photon_collection_objective(p=p_photon_collection) # 1.
emissions.add_quantum_efficiency(p=0.9) # 4.1.
emissions.add_transmittance(p=0.99) # 3 (depending on number of components of optical
# path, may be applied multiple times)
emissions.add_poisson_noise(rate=0.05) # 4.2. (dark noise), note the frame time
emissions.add_emccd_gain(emccd_gain=10) # 5. (+ multiplicative noise)
emissions.add_gaussian_noise(mean=10, std=1, seed=rng) # 6. (readout noise)
# CIC (spurious noise) neglected since low probability to happen in the pixels of
# interest
emissions.apply_threshold(threshold=100) # 7 (thresholding)

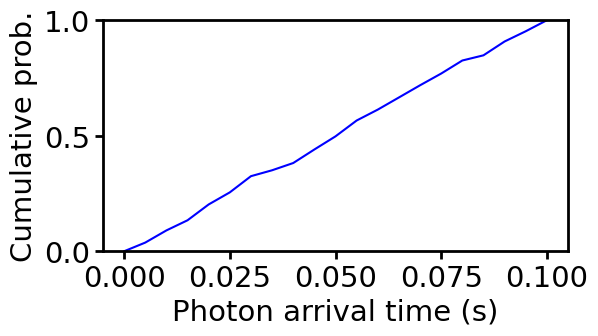

emissions.plot_cumulative_events(scale=1)

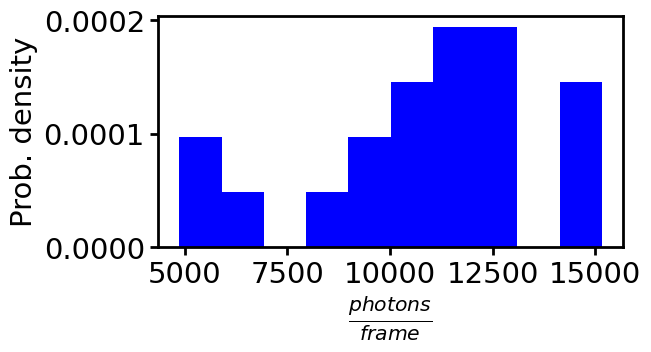

emissions.plot_histogram(scale=1)

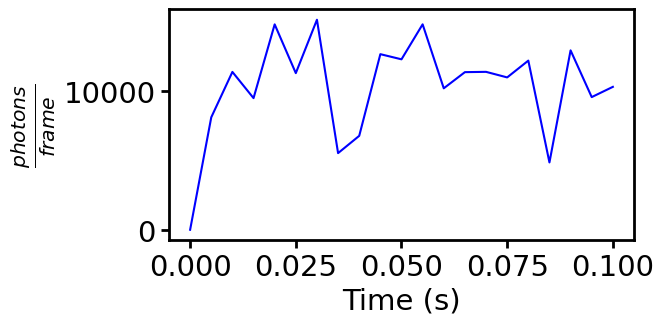

emissions.plot_time_series(scale=1)
# to save the time_series and time_points
# emissions.save(path='', name_extension='test')
# to load time_series and time_points
# emissions.load(path='', name_extension='test')
array([[<Axes: xlabel='Time (s)', ylabel='$\\frac{photons}{frame}$'>]],
dtype=object)
Simulation of pulsed excitation¶
%%time
emissions_tcspc = em.Emissions(frame_time="5ms", seed=rng, bandpass=None)
lifetimes_DA, lifetimes_D, lifetimes_all, simulation_object = emissions_tcspc.tcspc(
transition_set=transition_set,
number_pulses=5e5,
pulse_duration=1e-11,
time_between_pulses=1e-7,
excitation_rates={"cy5_dna": 1e11},
size=1e5,
store_time_points=True,
# details = True
)
the last frame (of index 0.05) has 1.00e+00 times the pulses of other frames.
CPU times: user 1min 37s, sys: 314 ms, total: 1min 38s
Wall time: 1min 38s

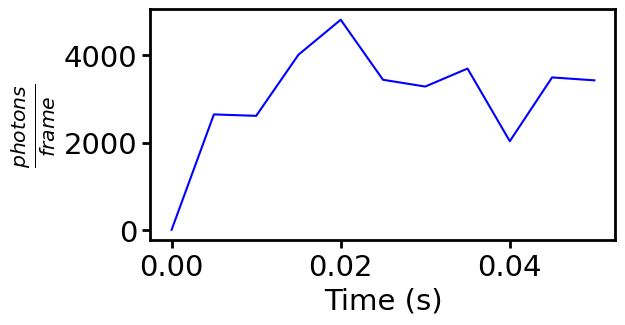

emissions_tcspc.plot_time_series()
fi.universal_figure(
type_="hist", data=lifetimes_all, ylabel="PD", density=True, xlabel="Lifetime (s)"
)
array([[<Axes: xlabel='Lifetime (s)', ylabel='PD'>]], dtype=object)
Fluorescence correlation spectroscopy¶
Observed fluorescence emission events can be analyzed by a correlation analysis.
fcs = fcs_p.FCS(emissions)
list(vars(fcs).keys())
['emissions', 'autocorrelation', 'tau']

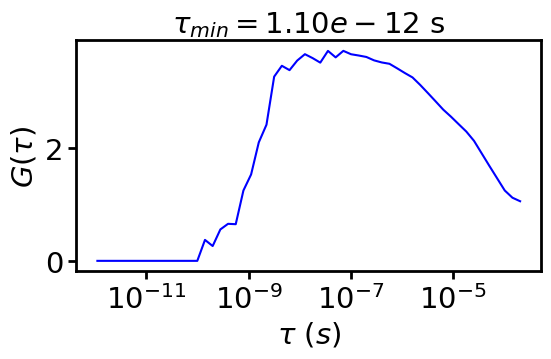

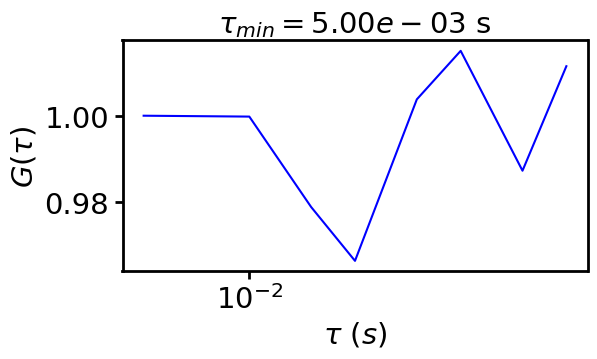

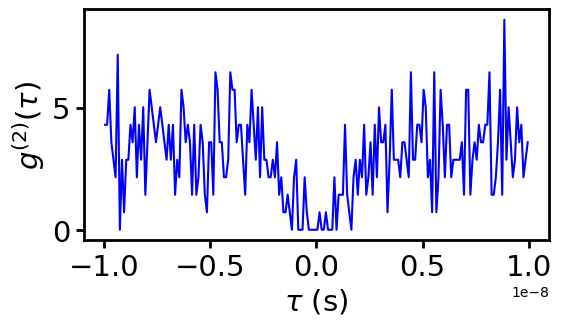

Autocorrelation of time points¶
%%time
fcs.autocorrelate_time_points(
exp_min=-20, exp_max=-6, points_per_base=4, base=4, normalize=True
)
CPU times: user 3.34 s, sys: 350 ms, total: 3.69 s
Wall time: 3.69 s
<fluopy.fcs.FCS at 0x795a5bb857f0>
mi.print_class(fcs)
fcs.plot(normalize_to=None, unit="s", scale=1);
Attributes of <fluopy.fcs.FCS object at 0x795a5bb857f0>:
.................................................................
emissions = <fluopy.emissions.Emissions object at 0x795a5bb87cb0>
_________________________________________________________________
autocorrelation = array([0. , 0. , 0. , 0. ...9747, 1.24877656, 1.12061839,
1.05790237])
_________________________________________________________________
tau = array([1.09785722e-12, 1.55260457e-12, 2.1957144... 1.04193529e-04, 1.47351902e-04, 2.08387058e-04])
_________________________________________________________________
Autocorrelation of time series¶
fcs.autocorrelate_time_series(log=True, m=4, normalize=True)
<fluopy.fcs.FCS at 0x795a5bb857f0>
fcs.plot(normalize_to=None, unit="s", scale=1);
# some fcs fits are available:
# fcs_predict = fcs_p.fit_dark(tau, dark_lifetime, dark_occupation)
# fcs_predict = fcs_p.fit_antibunching(tau, excitation_rate, s1_lifetime)
# fcs_predict = fcs_p.fit_triplet_cis(tau, k_isc, k_T, k_01, k_10, k_iso, k_biso_eff)
Antibunching¶
Alternatively, you can focus on fast time scales in a linear scale and observe antibunching.
# sensible to tau_max and bin_width, see coincidence notebook
hist, bins = fcs_p.coincidence(
emissions.event_time_points[: int(2e5)], tau_max=1e-8, bin_width=1e-10, seed=rng
)
fi.universal_figure(
type_="line",
data=[bins, hist],
xlabel=r"$\tau$ (s)",
ylabel=r"$g^{(2)}(\tau)$",
scale=1,
);
